VFD、Servo 및 다양한 모터 드라이버 생산에 집중
연간 판매량 900,000개 이상
전력 범위: 0.4kw ~ 2000kw, 전압 범위: 110v ~ 10000v
서비스 유통 네트워크는 전 세계를 커버합니다.
| 원래 장소: | 상하이, 중국 |
|---|---|
| 브랜드 이름: | ZONCN Vfd |
| 인증: | CE+KC |
| 모델 번호: | Z2000 시리즈 Vfd |
| 문서: | ZONCN Z2000(T) English Cata...og.pdf |
| 최소 주문 수량: | 1개 단위 |
| 포장 세부 사항: | 상자 포장 ； |
| 배달 시간: | 7-30 일 근무일 |
| 지불 조건: | T/T, Western Union, PayPal |
| 공급 능력: | 한 달에 10 만 유닛 |
| 보증: | 18 달 보증 | 힘: | 22kW Vfd |
|---|---|---|---|
| 전압: | 480V 440V 415V 380V VFD | 유형: | AC 드라이브 vfd |
| 모델: | Z2400-22G/30P VFD | 입력 주파수: | 50/60Hz VFD |
| 주파수 범위: | 0~600Hz VFD | 애플리케이션: | 섬유기계 VFD |
| VF곡선: | 직선 V/F 곡선；다점 V/F 곡선；N-전력 V/F 곡선 | 속도 범위: | 1:100(SVC) |
| 내장 EMC 필터: | 예 | 재료: | 플라스틱과 금속 |
| 강조하다: | 380V 22KW AC variable frequency drive,low voltage VFD inverter with Modbus,blower compatible variable frequency converter |
||

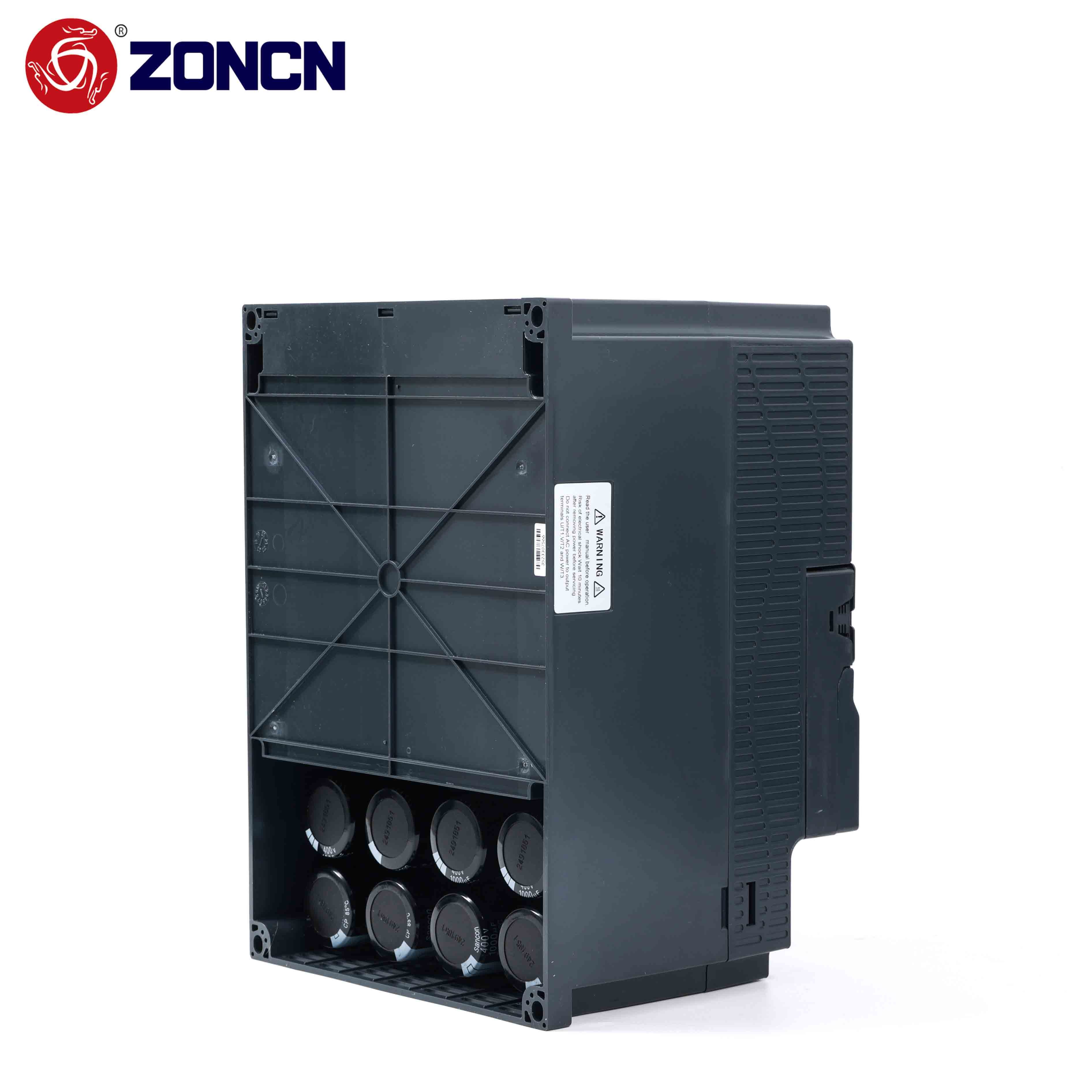

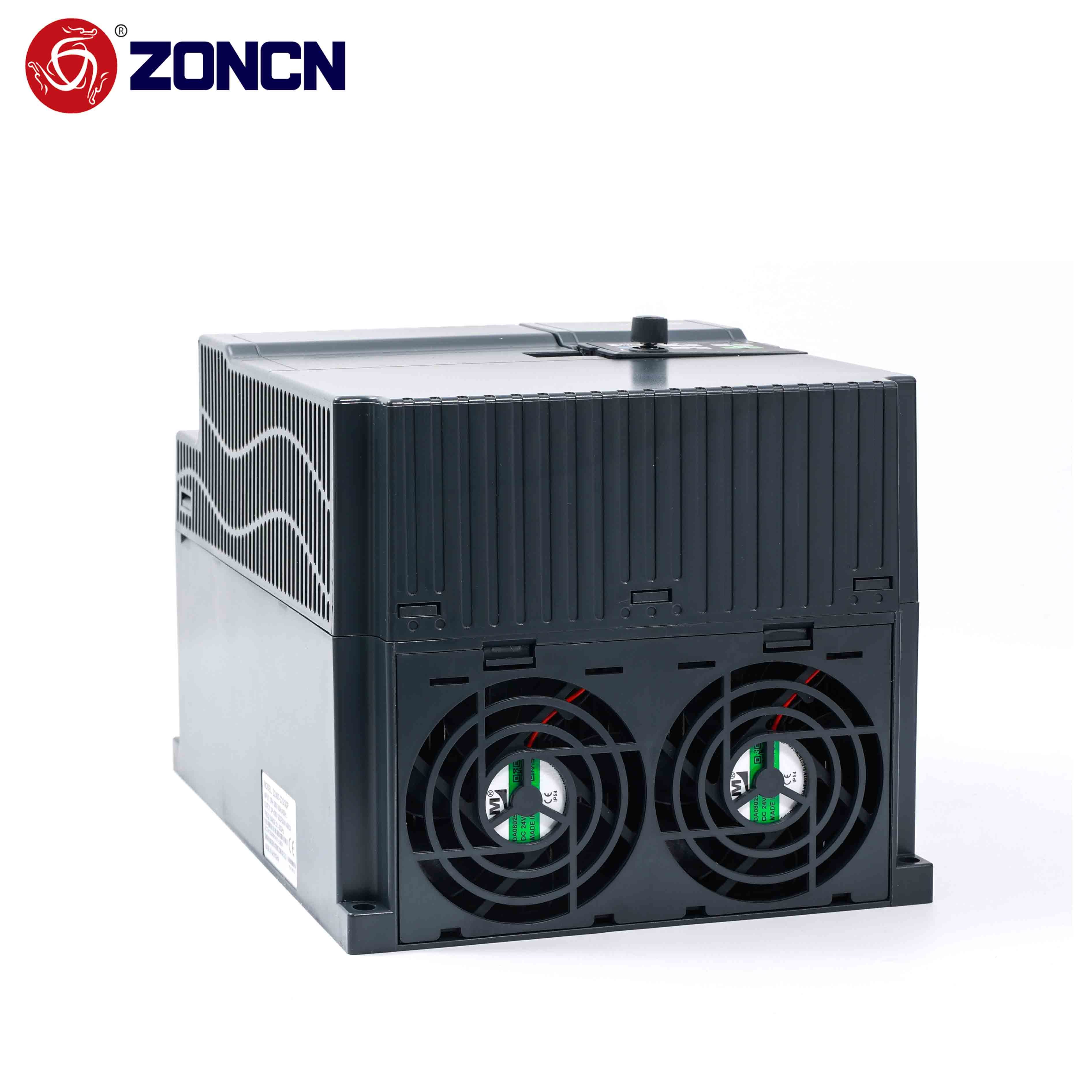

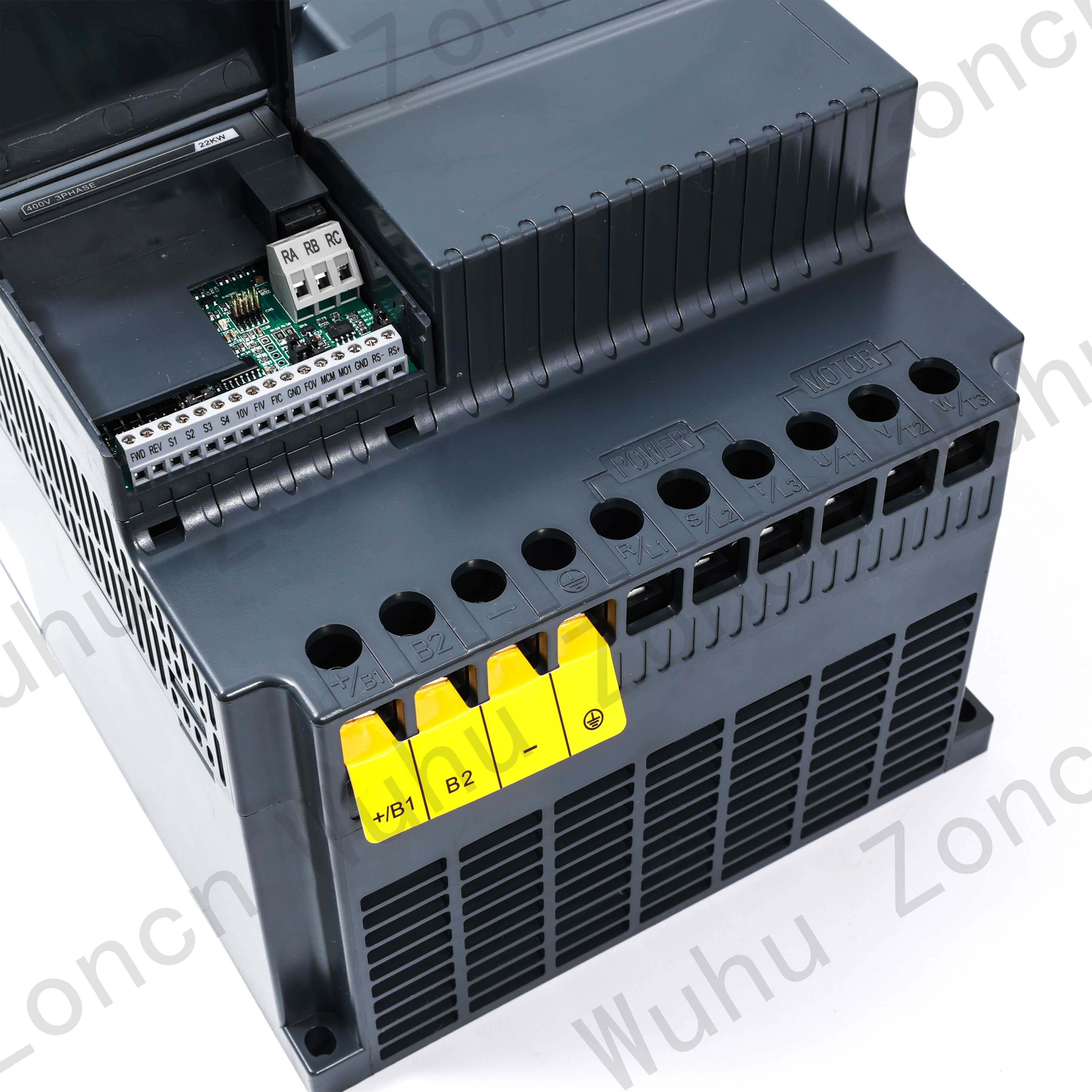

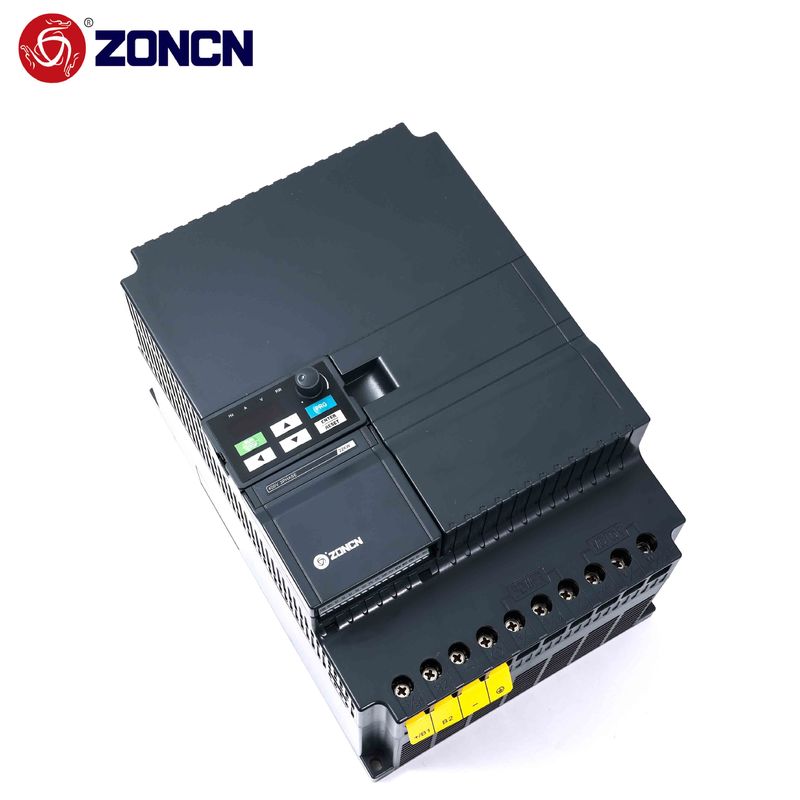

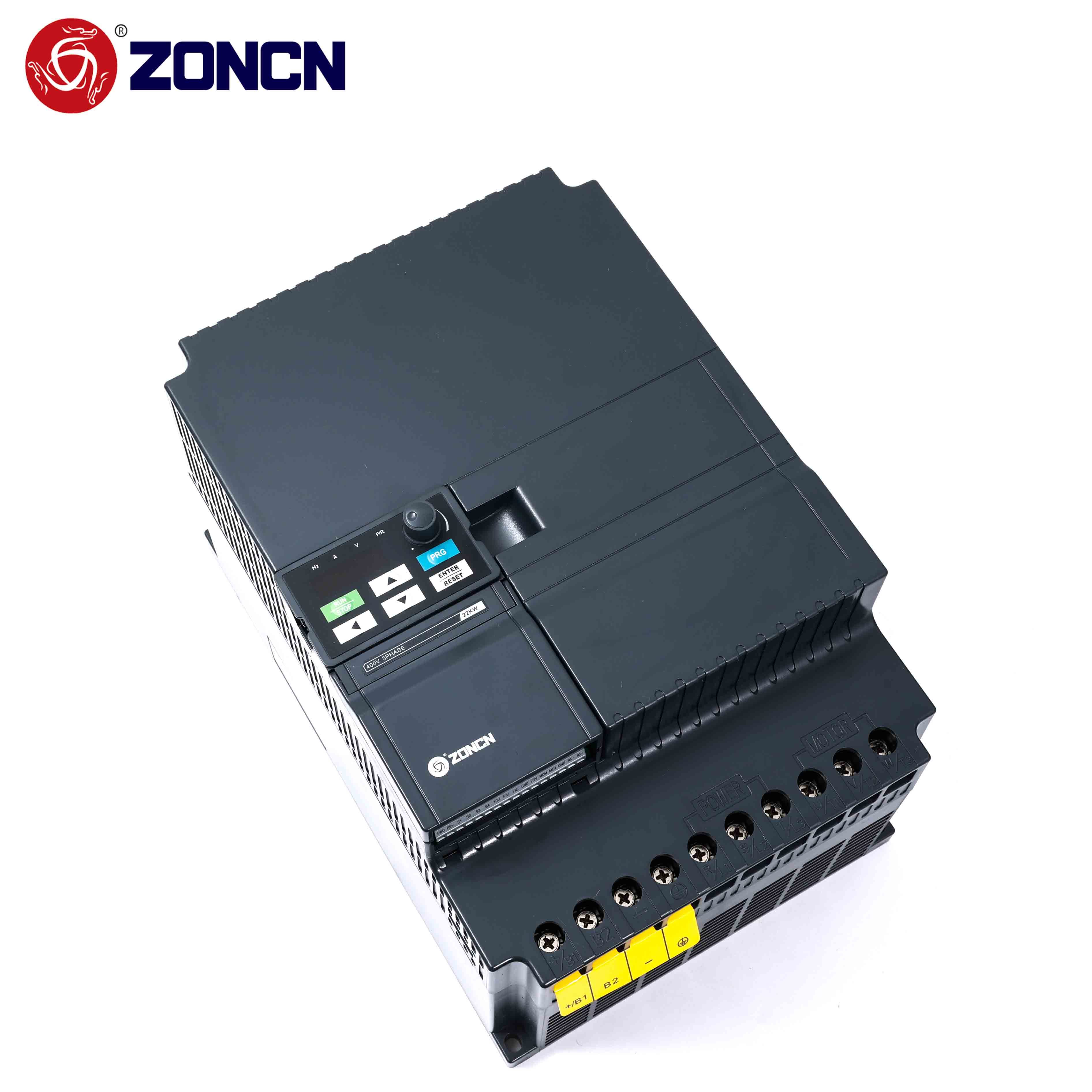

22KW 380V High-performance Frequency Converter
1:Introduction to VFD Functional Features
- Open-loop vector control, VF control；
- Easy to debug, with excellent performance；
- Optional built-in EMC filter, supports MODBUS RS485 communication, supports MODBUS RTU, and optional EtherCAT communication；
- Support permanent magnet synchronous motors；
- It has an overload capacity of 150% of rated current for a continuous 60 seconds and 180% of rated current for a continuous 3 seconds, and can handle frequent impact loads；
- Phase loss protection, overheat protection, overvoltage protection and other protection functions；
- Supports 220V input and 380V output; supports 110V; supports 380V; supports 440V; supports 480V
- 0.4 - 37KW with built-in braking unit; 45 - 160KW with optional built-in braking unit；
- For power ratings above 22KW, an internal DC reactor is optional. This can help mitigate the impact of unstable voltage；
- NPN supported, PNP optional；

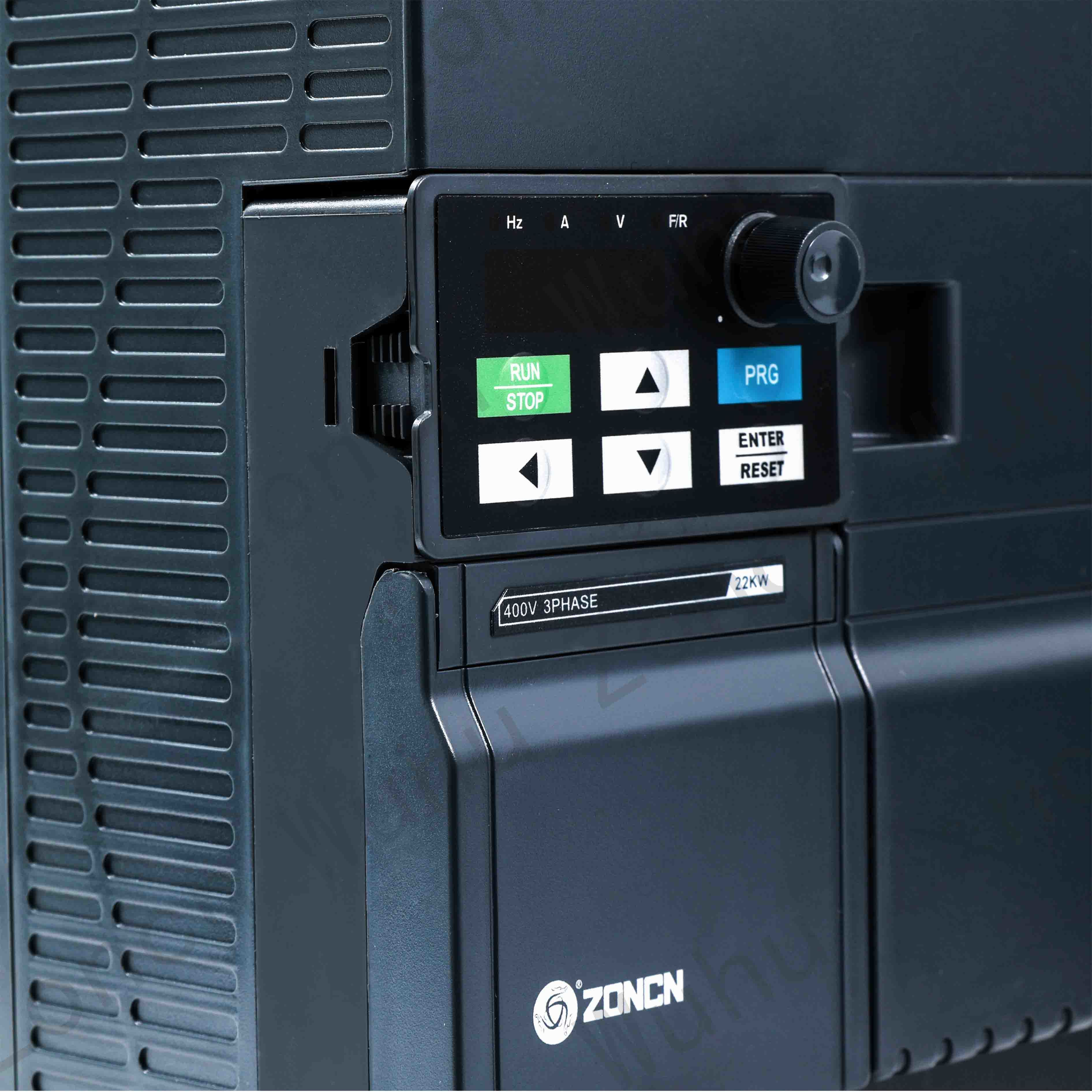

- Support detachable LED keyboard；
- High torque output ensures smooth startup of the motor during heavy loads；
- ZONCN independently developed IGBTs, with excellent performance；
- Power range: 220V 0.4 - 7.5KW 380V: 0.4 - 450KW；
2:VFD applications
- It has been widely applied in fields such as air compressors, food processing machinery, rubber production equipment, textile machinery, machine tools, water pumps, spindle motors, etc. For example, in the building materials industry, it cooperates with the multi-speed function to achieve precise temperature control of kilns; in hoisting equipment, it relies on the high dynamic response of vector control to avoid the risk of hook slipping.
3:ZONCN Company Profile
Wuhu Zhongchen Automation Equipment Co., Ltd., founded in [year], is a high-tech enterprise focusing on the industrial automation field. Headquartered in Jiujiang District, Wuhu City, Anhui Province, it is a subsidiary of Shanghai Zhongchen Electronic Technology Co., Ltd.
4:FAQ
Q1:What is your MOQ?
