VFD、Servo 및 다양한 모터 드라이버 생산에 집중
연간 판매량 900,000개 이상
전력 범위: 0.4kw ~ 2000kw, 전압 범위: 110v ~ 10000v
서비스 유통 네트워크는 전 세계를 커버합니다.
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | ZONCN |
| 인증: | KC; CE |
| 모델 번호: | NZ100-1R5G-4 |
| 최소 주문 수량: | 1 PC |
| 포장 세부 사항: | 내부: 상자; 외부: 카튼 |
| 배달 시간: | 7-30 일 |
| 지불 조건: | 전신환, L/C (신용장), 웨스턴 유니온, 페이팔 |
| 공급 능력: | 100,000 PC/달 |
| 제품: | 가변 방식 드라이브 | 브랜드: | ZONCN |
|---|---|---|---|
| 시리즈: | NZ100 | 제어 모드: | V/F 제어 |
| 피드 제어: | 내장 | 힘: | 1.5KW/2HP |
| 의사소통: | RS485 | 보호: | IP20 |
| 냉방 모드: | 강제 공기 냉각 | OEM: | 그래요 |
| 강조하다: | 0.75kw VFD Inverter Factory,1.5kw VFD Inverter Factory,380v VFD Inverter Factory |
||
VFD Inverter Factory High Performance 380v Variable Frequency Drives 0.75kw 1.5kw

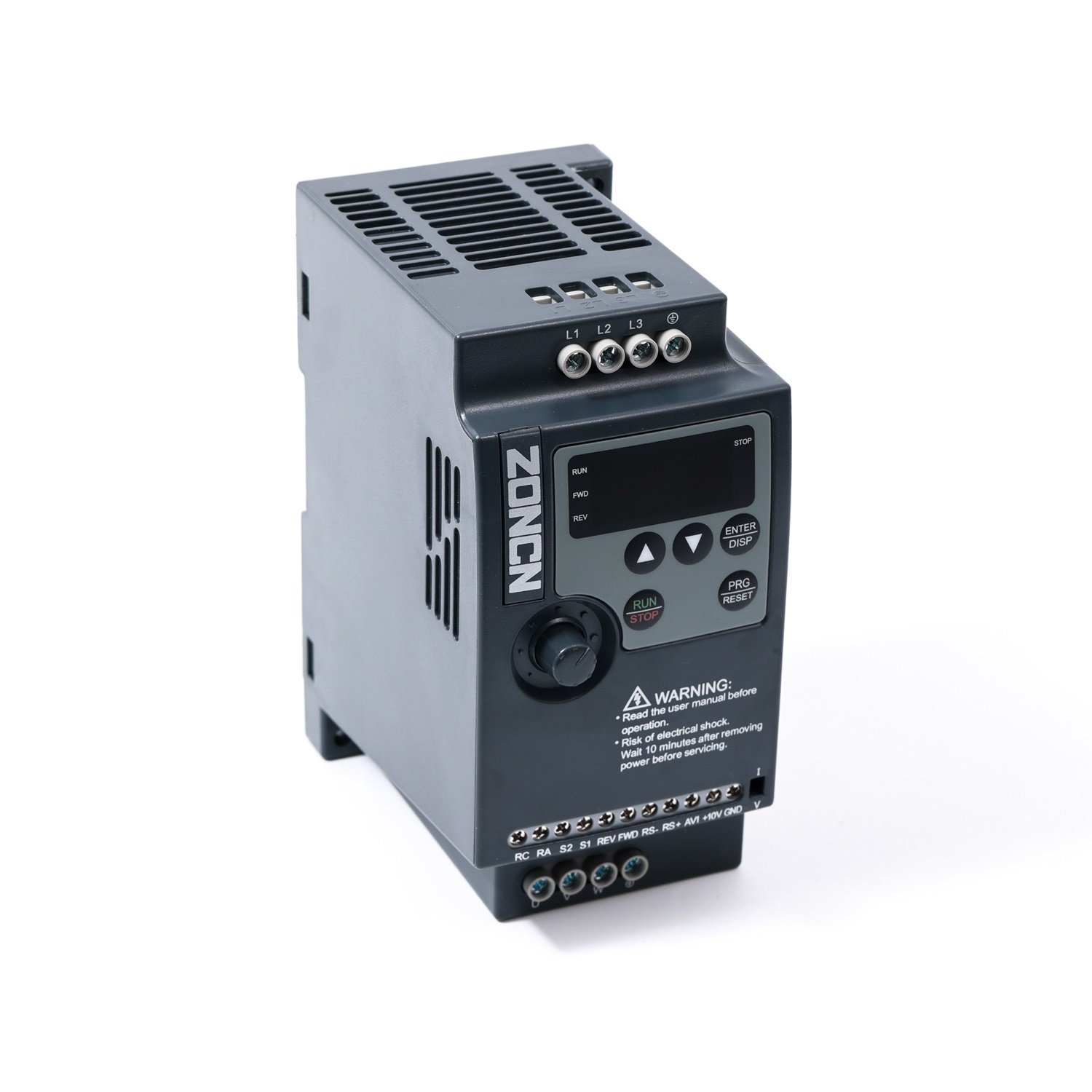

ZONCN NZ100 Series VFD: Key Features & Advantages
Advanced Control
This high-performance VFD features V/F control with built-in PID for precise motor regulation. The intelligent VFD automatically adjusts parameters for optimal operation.
User-Friendly Design

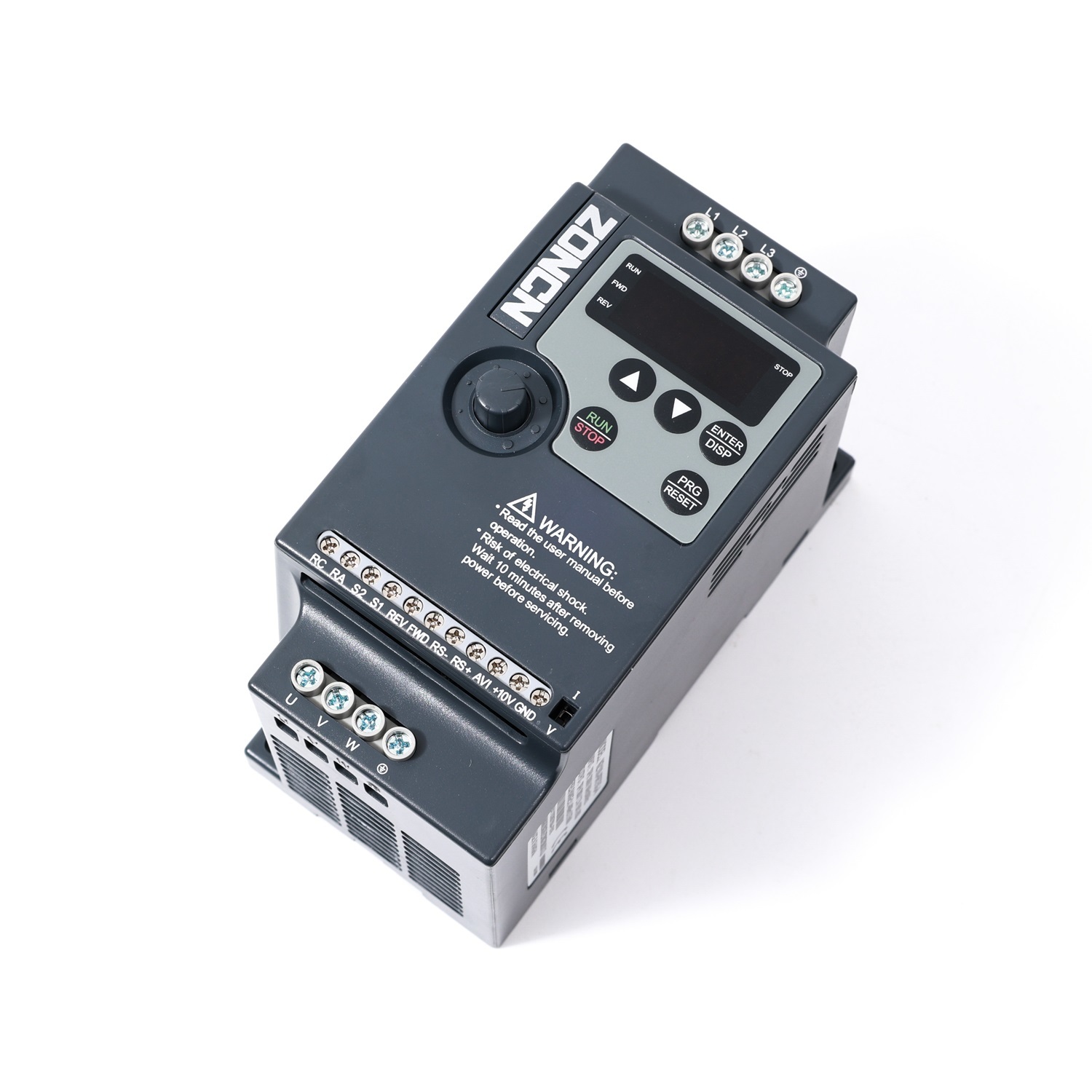

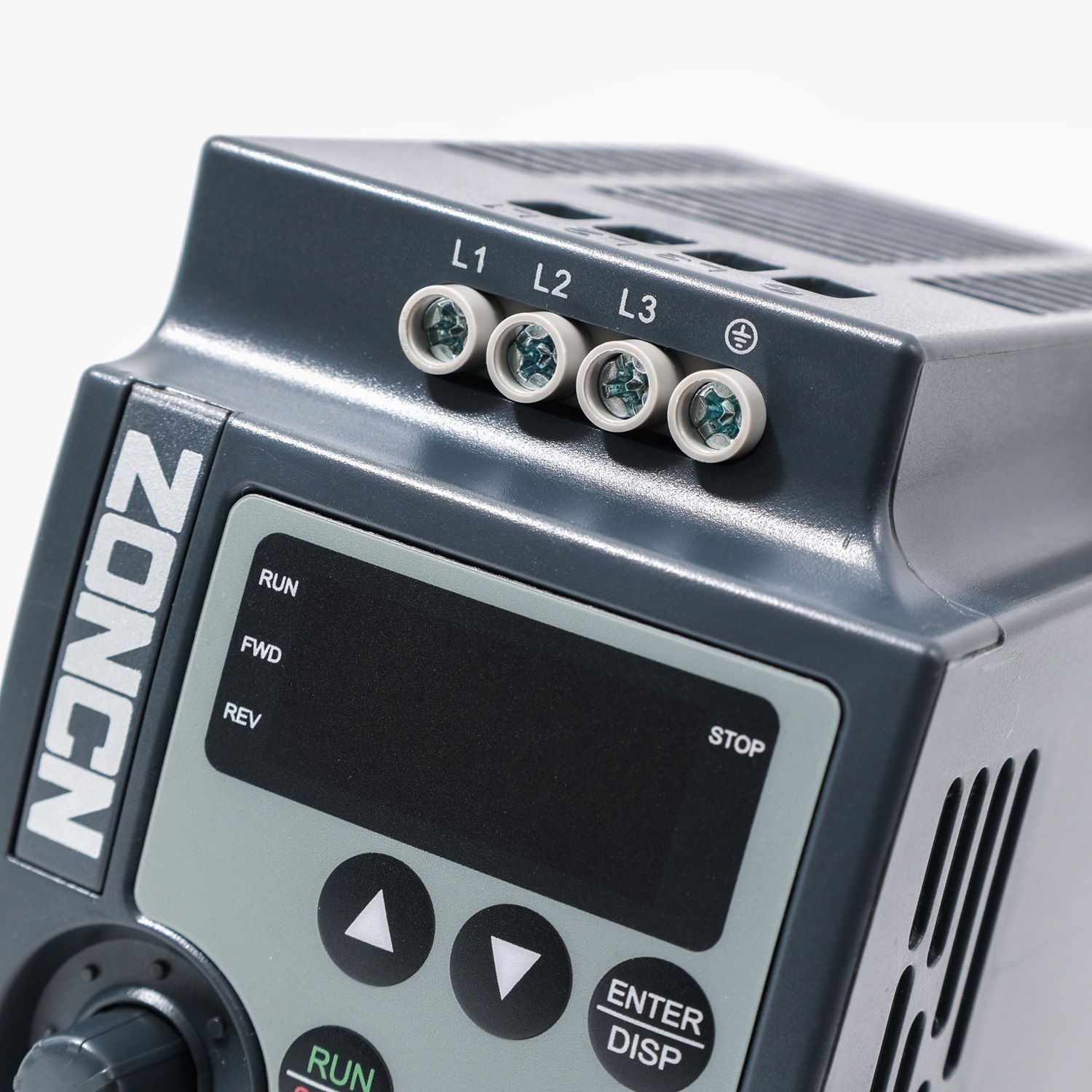

The compact VFD has externally accessible ports for easy wiring and maintenance.
Includes a detachable remote control keypad, allowing flexible operation from a distance.

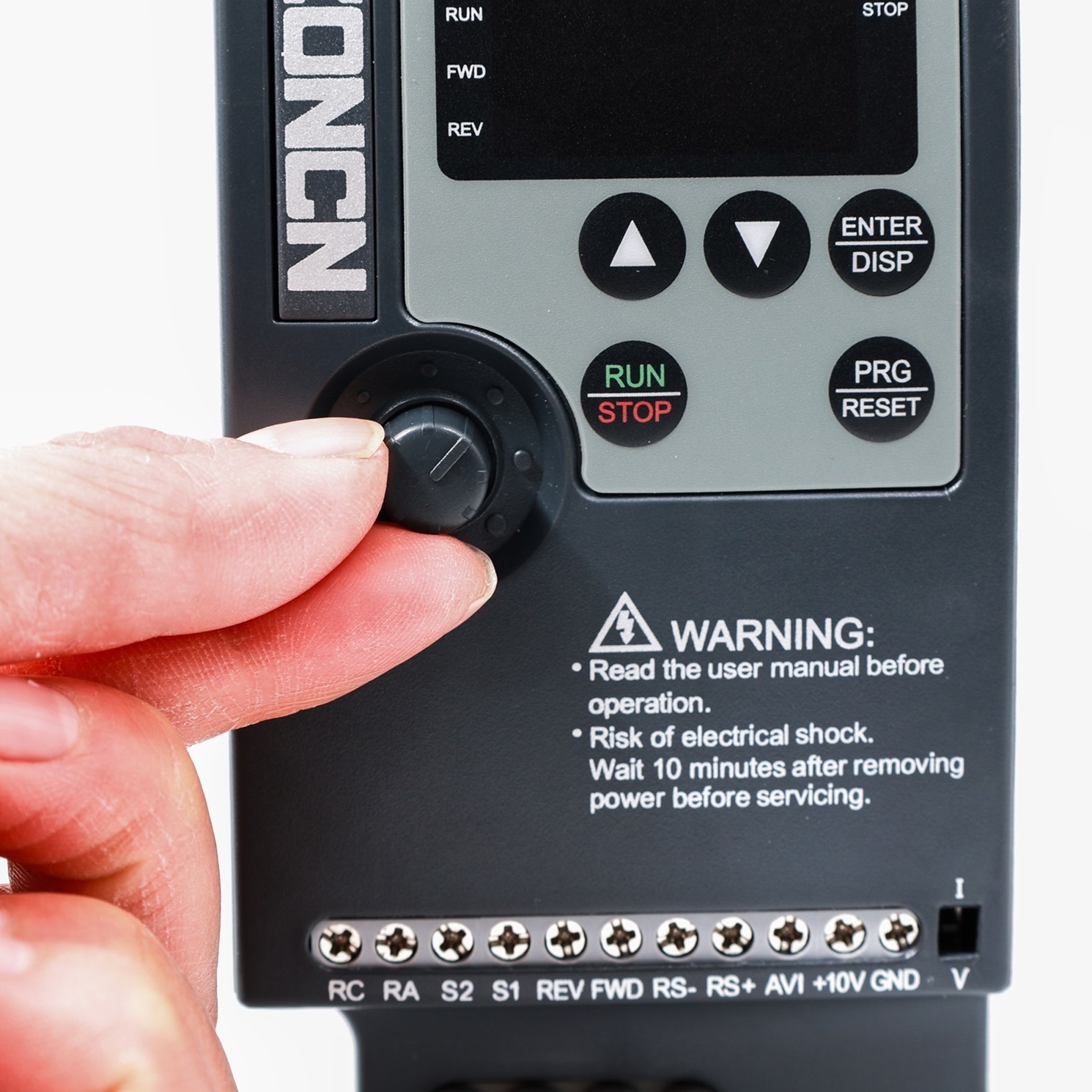

Equipped with a manual potentiometer knob for quick speed adjustment.
Versatile I/O Options
The VFD provides analog input terminals (0-10V/4-20mA) for seamless sensor integration.
Supports RS485 communication (MODBUS RTU/ASCII), enabling PLC/SCADA connectivity.
Space-Saving Installation
With its ultra-compact size, this VFD fits perfectly in tight control cabinets.
Units ≤5.5KW feature 35mm DIN rail mounting for tool-free installation.
Customization Ready
The OEM-friendly VFD supports customized firmware and parameter presets.
Includes programmable multi-function terminals for special applications.
Reliable Protection
This durable VFD offers overcurrent/overvoltage protection with IP20 rating.
Operates stably in -10°C~50°C environments.
Energy Efficient
The smart VFD reduces energy consumption by 20-40% through optimized algorithms.
Ideal for pumps, conveyors and OEM equipment, this feature-packed VFD delivers exceptional value. The NZ100 VFD combines compact design with professional-grade functionality.
VFD inverter's Nameplate Description
VFD inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
VFD inverter's Dimension
VFD inverter's Wiring Diagram
VFD inverter's Workshop
VFD inverter's Application
