VFD、Servo 및 다양한 모터 드라이버 생산에 집중
연간 판매량 900,000개 이상
전력 범위: 0.4kw ~ 2000kw, 전압 범위: 110v ~ 10000v
서비스 유통 네트워크는 전 세계를 커버합니다.
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | ZONCN |
| 인증: | KC; CE |
| 모델 번호: | NZ100-1R5G-4 |
| 최소 주문 수량: | 1 PC |
| 포장 세부 사항: | 내부: 상자; 외부: 카튼 |
| 배달 시간: | 7-30 일 |
| 지불 조건: | 전신환, L/C (신용장), 웨스턴 유니온, 페이팔 |
| 공급 능력: | 100,000 PC/달 |
| 제품: | 가변 방식 드라이브 | 브랜드: | ZONCN |
|---|---|---|---|
| 시리즈: | NZ100 | 제어 모드: | V/F 제어 |
| 피드 제어: | 내장 | 힘: | 1.5KW/2HP |
| 과부하 방지: | 그래요 | 과도한 보호: | 그래요 |
| Voltge 생산에서: | 그래요 | 냉방 모드: | 강제 공기 냉각 |
| 강조하다: | 2hp VFD Inverter,VFD Inverter 1.5kw,380v VFD Inverter |
||

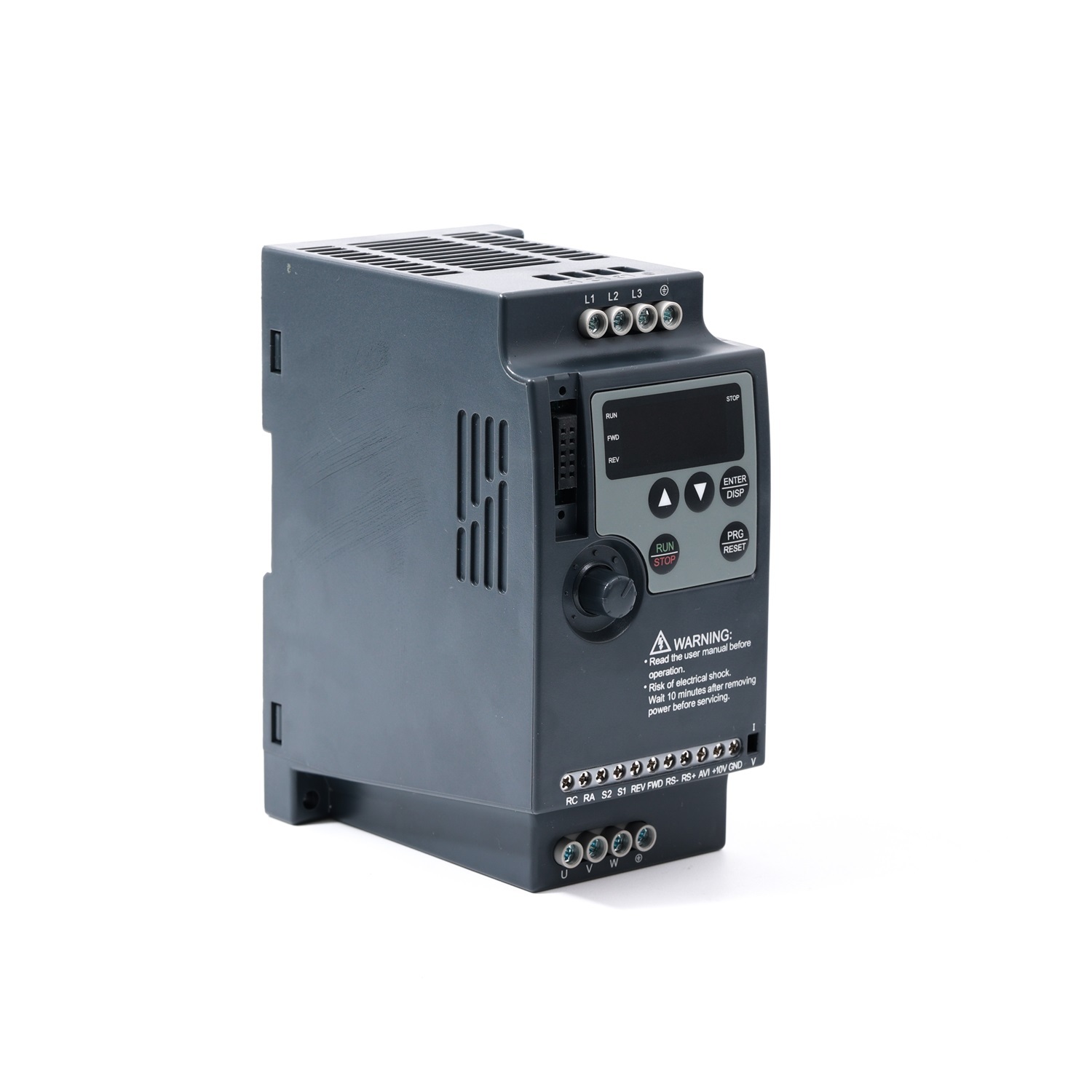

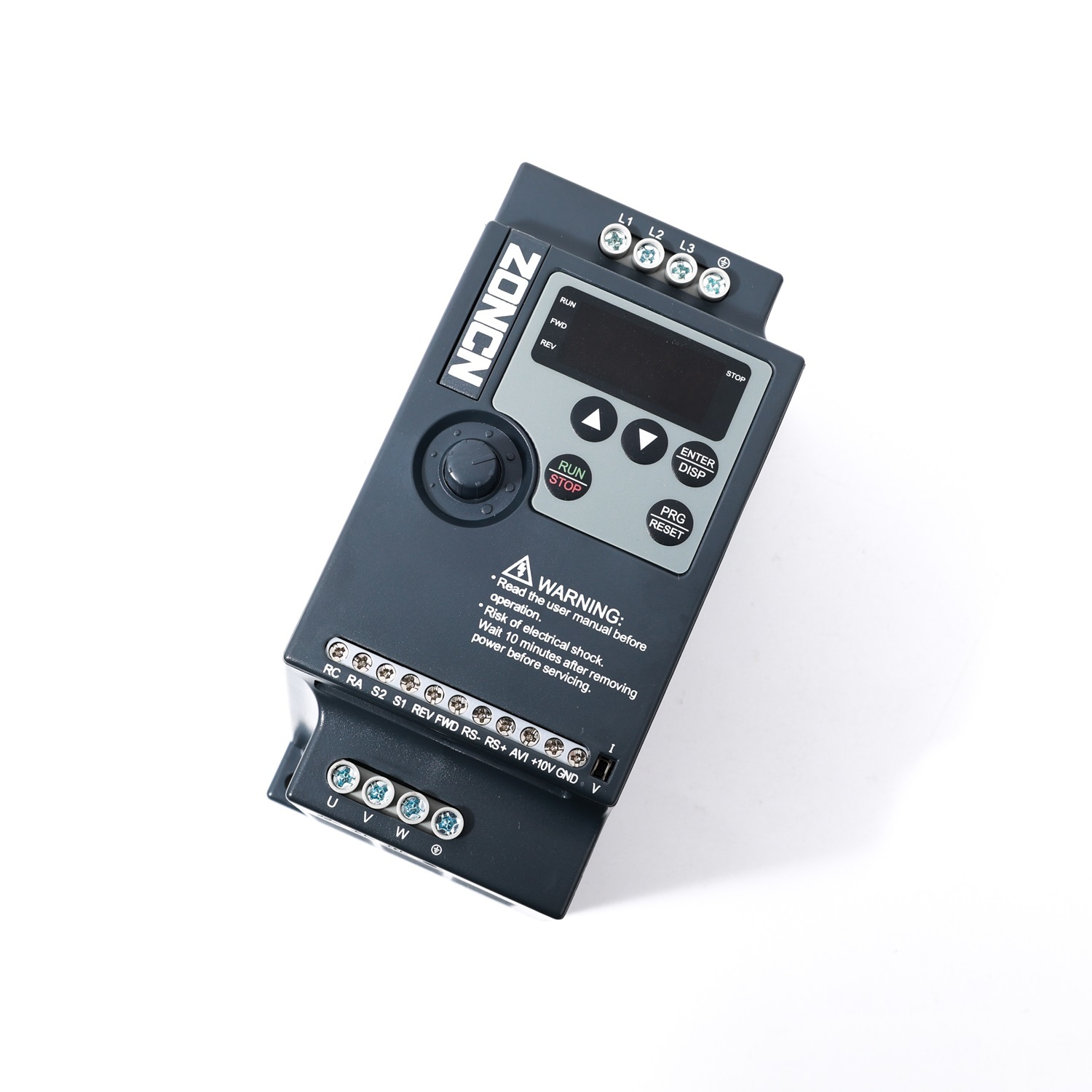

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw
The ZONCN NZ100 series VFD (Variable Frequency Drive) redefines compact motor control with its exceptional efficiency and space-saving design. This advanced VFD delivers outstanding advantages for applications where size and performance matter equally.
Key Benefits of This Compact VFD:
Space Optimization
Small size, this VFD saves up to 40% panel space compared to standard VFD models
The ultra-compact VFD design enables flexible installation in tight spaces
Energy Efficiency
This intelligent VFD achieves 20-35% energy savings through optimized PWM control algorithms
The VFD features automatic energy optimization that adjusts output in real-time
Enhanced Performance
Despite its small size, this VFD delivers 150% overload capacity for 60 seconds
The VFD maintains stable operation from -10°C to 50°C
Smart Features
The VFD incorporates built-in PLC functionality for standalone operation
With RS485 communication, this VFD easily integrates into automation systems
User-Friendly Operation

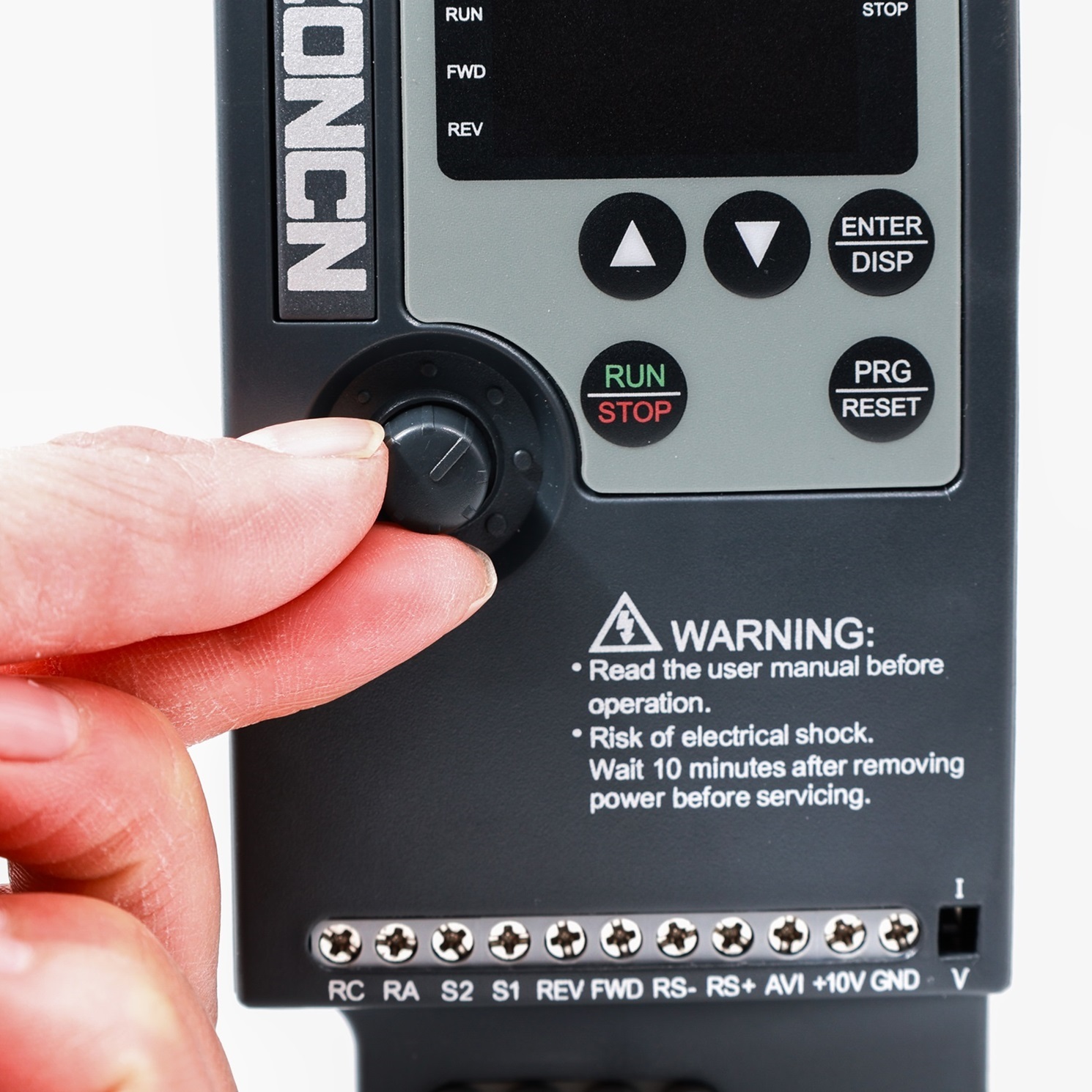

The VFD's intuitive interface simplifies parameter setup
Reliable Protection
The VFD provides comprehensive safeguards including overcurrent and overvoltage protection
IP20 enclosure ensures this VFD withstands industrial environments
Ideal for conveyor systems, packaging machines, and small pumps, the NZ100 series VFD combines compact dimensions with full-sized performance. This innovative VFD solution proves that great things truly come in small packages.
VFD inverter's Nameplate Description
VFD inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
VFD inverter's Dimension
VFD inverter's Wiring Diagram
VFD inverter's Workshop
VFD inverter's Application
